Teufelberger Apex Bipattern Climbing Rope (Maxim - New England Rope)

Teufelberger (New England Ropes)
SKU:
NE342-SPOOL

For availability and pricing call 509-291-3024 or email cbknot@cbknot.com

(No reviews yet)
Weight:
9.00 LBS
Width:
10.00 (in)
Height:
12.00 (in)
Depth:
12.00 (in)
Current Stock:
Description

Product Description:
Our Apex series ropes are designed to provide optimum life safety while permitting the climber to push past his or her personal limits. Apex offers excellent durability with extreme fall protection. Designed to be pushed everyday, Apex ropes provide the long life and safety assurance you have come to expect from MAXIM Dynamic Ropes.

Features:

  • All of our ropes have Endura dry treated cores. Select styles have a Double Dry (2x) treatment where the cover is coated with Endura Dry Treatment as well as the core for the ultimate in dry protection. These models carry the "2X Dry" designation on our website.
  • Bi-Pattern, available (see below)

 Applications:

  • Classic
  • Challenge Courses
  • Big Wall
SizeFalls
Held		WeightImpact
Force (kN)		Sheath
Slippage (mm)		Static
Elongation %		Dynamic
Elongation %		ClassificationLengthsColorsEndura
Dry
lbs/100'g/m
 11.0  15  5.5  81.8  9.6  0  4.8  29  Single  60M, 70M  Burgundy Bi-Pattern  2X DRY
 11.0  15  5.5  81.8  9.6  0  4.8  29  Single  50M, 60M, 200M  OD Green, Amber  2X DRY
 11.0  15  5.5  81.8  9.6  0  4.8  29  Single  50M, 60M, 200M  Eggplant, Blue  STD-DRY
 10.5  12  5.0  74.4  9.4  0  4.8  29  Single  60M, 70M, 200M  Amethyst  2X DRY
 10.5  12  5.0  74.4  9.4  0  4.8  29  Single  60M, 70M, 200M  Green/Yellow  STD-DRY

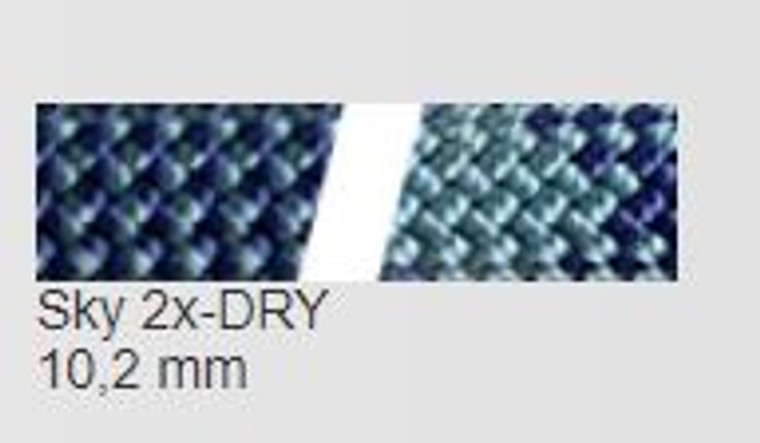

 10.2  9  4.5  66.9  9.8  0  4.5  29  Single  60M  Silver Anniversary Bi-Pattern (2X)  2X DRY
 9.9  7  4.4  65.5  9.5  0  5.0  29  Single  60M, 70M  Yellow, Green  2X DRY
 9.9  7  4.4  65.5  9.5  0  5.0  29  Single  60M, 70M  Terra Cotta  STD-DRY

Sunlight/UV:
Very little degradation from sunlight. Can be used outside over long term if inspected regularly.

Chemicals:
Nylon will degrade with strong oxidizing agents, mineral acids, and 90% formic acid. May discolor when exposed to high levels of carbon dioxide.

Heat:
Nylon melts at 460°F with progressive strength loss above 300°F.

Dielectrics:
Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.

Sheaves:
N/A

Working Loads:
No blanket safe working load (SWL) recommendations can be made for any line because SWL's must be calculated based on application, conditions of use, and potential danger to personnel among other considerations. It is recommended that the end user establish working loads and safety factors based on best practices established by the end user's industry; by professional judgment and personal experience; and after thorough assessment of all risks. The SWL is a guideline for the use of a rope in good condition for non-critical applications and should be reduced where life, limb, or valuable property is involved, or in cases of exceptional service such as shock loading, sustained loading, severe vibration, etc. The Cordage Institute specifies that the SWL of a rope shall be determined by dividing the Minimum Tensile Strength of the rope by a safety factor. The safety factor ranges from 5 to 12 for non-critical uses and is typically set at 15 for life lines.

Splicing Instructions:
Not Spliceable
